Flow Meter

• Equipment Type
• Diesel Flow Meter

• Accuracy
• 0.5%

• Application Media
• Diesel, Light Oil, Fuel

• Capacity
• Up to 100,000 liters (totalizer)

• Color
• Grey/Black

• Connecting Type
• Threaded / Flanged

• Connectivity Type
• Wired

• Connector
• Standard cable glands

• Current Range
• 4-20 mA

• Cut Size
• Customizable

• Diameter
• 1 inch to 4 inch

• Dimension (L*W*H)
• Approx. 210 x 160 x 180 mm

• Display Type
• Other, Digital LCD

• Flow Rate
• Up to 2,000 L/min

• Frequency
• 50/60 Hz

• Housing Material
• Industrial Plastic & Metal

• Humidity %
• 95% RH, non-condensing

• Input
• Pulse, 4-20mA

• Language
• English

• Length
• Depends on model

• Load Capacity
• Up to 2,000 L/min

• Material
• Aluminum Alloy, Stainless Steel

• Measurement Range
• 5-80 L/min to 1,000 L/min

• Measuring Units
• Liters (L), Gallons (GAL)

• Model
• EMR3 Diesel Flow Meter

• Mounting
• Threaded / Flange

• Operating Temperature
• -20C to +60C

• Output
• Pulse, 4-20mA

• Power Consumption
• < 10W

• Power Supply
• 220V AC / 24V DC

• Pressure Range
• 0 to 10 bar

• Process Connection
• BSP / NPT

• Protection
• IP65

• Range
• 0-99999 L

• Resolution
• 0.01 L

• Response Time
• <1s

• Sensitivity
• High (for fuel detection)

• Sensor Type
• Turbine

• Signal Type
• Digital

• Stability
• 0.2%/year

• Storage Temperature
• -40C to +85C

• Temperature Range
• -20C to +60C

• Velocity Range
• 0.5-6 m/s

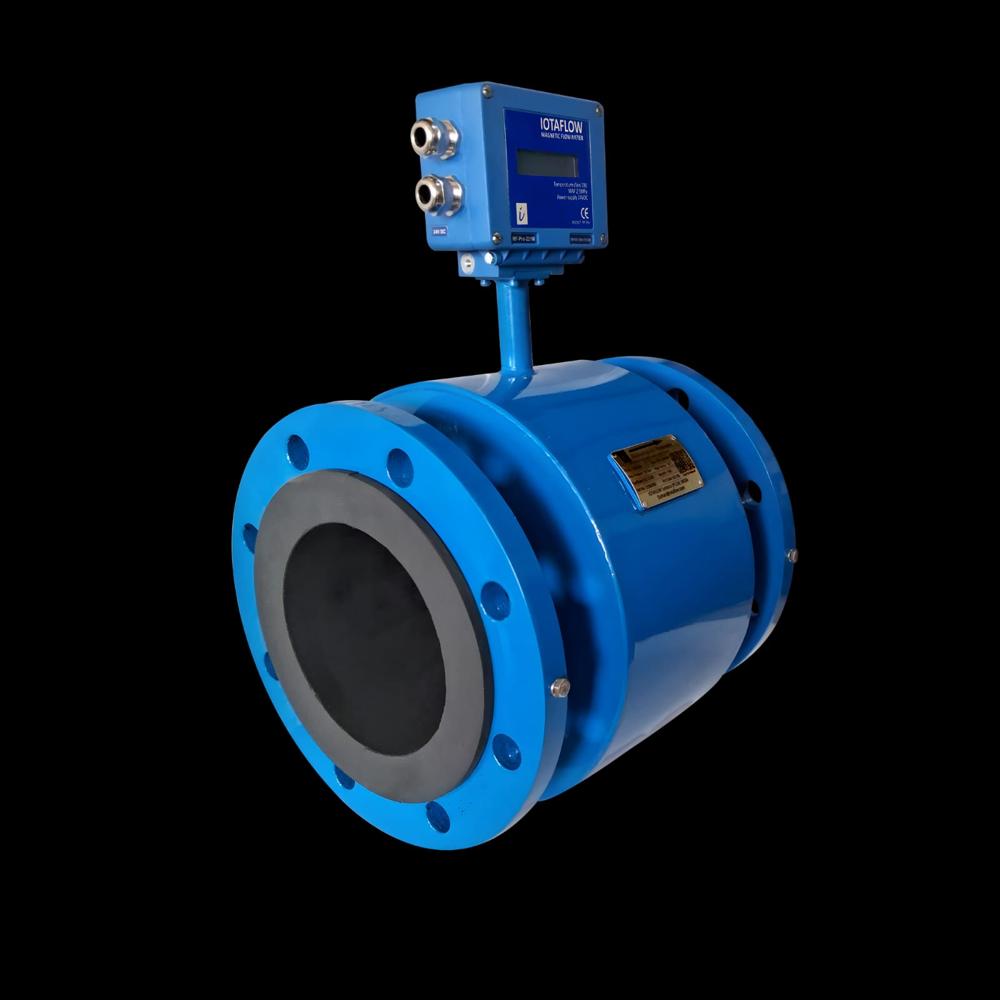

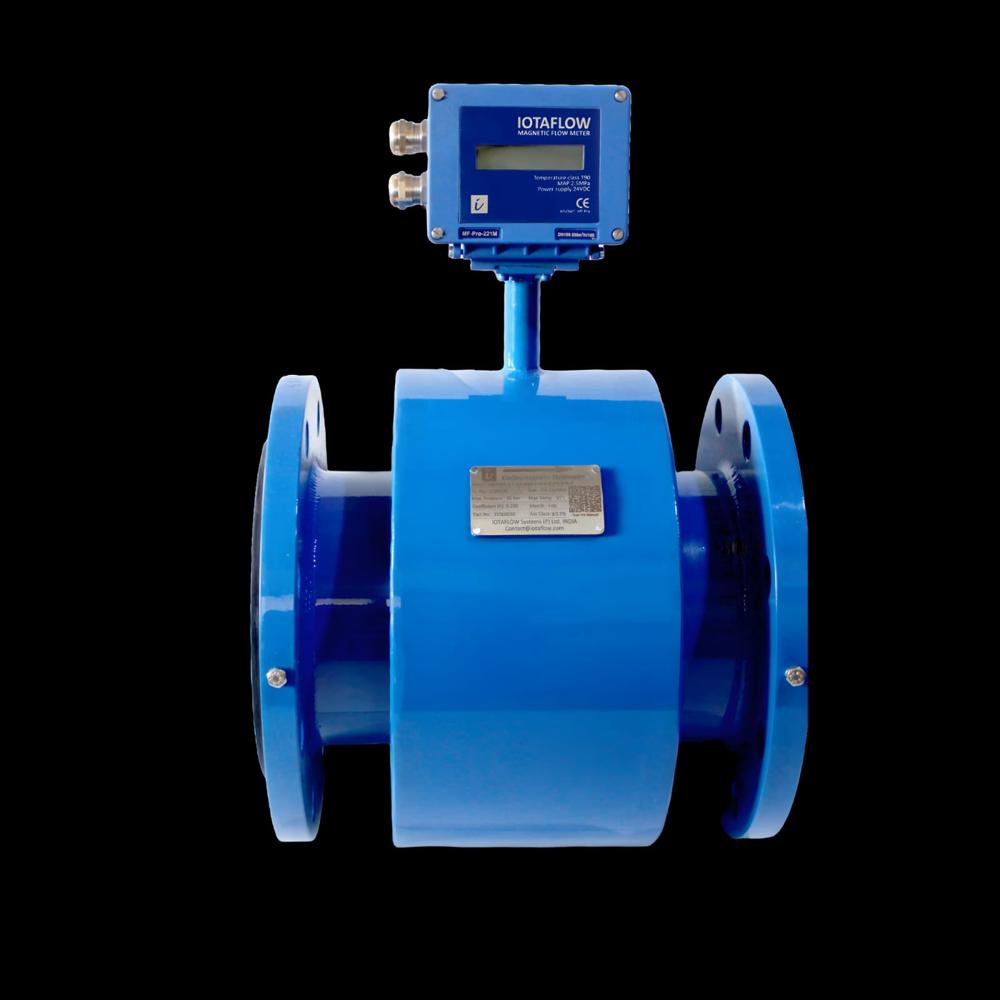

• Equipment Type
• Electromagnetic Flow Meter

• Accuracy
• 0.5% of reading %

• Application Media
• Liquids (Conductive)

• Axis Type
• Single (Inline)

• Color
• Blue

• Connecting Type
• Flanged Ends

• Connectivity Type
• Wired

• Connector
• Cable Gland

• Current Range
• 4-20 mA Milliamperes (mA)

• Diameter
• 15 mm to 600 mm Meter (m)

• Dimension (L*W*H)
• Depends on diameter (Customized) Meter (m)

• Display Type
• Digital Only

• Flow Rate
• User selectable (m3/h, L/h, L/min)

• Frequency
• 50 / 60 Hz Hertz (HZ)

• Height
• 300 Meter (m)

• Housing Material
• Mild Steel (Powder Coated)

• Humidity %
• 0-95% non-condensing

• Input
• Pulse / Current Loop

• Language
• English

• Length
• Depends on diameter Meter (m)

• Material
• Mild Steel with FEP/PTFE Lining

• Measurement Range
• 0-6000 m3/h (Pipe size dependent)

• Measuring Units
• m3/h, L/h, L/min

• Model
• IOTAFLOW

• Mounting
• Flange Mounting

• Operating Temperature
• -10C to +60C Fahrenheit (oF)

• Output
• 4-20 mA, RS485, Pulse

• Power Consumption
• < 15 VA Volt (V)

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• Up to 16 bar

• Process Connection
• Flanged

• Product Type
• Magnetic Flow meter

• Protection
• IP65 / IP68

• Range
• 0.05 m/s to 10 m/s

• Resolution
• 0.001 m3/h

• Response Time
• < 0.5 seconds Hours

• Sensitivity
• High

• Sensor Type
• Magnetic

• Signal Type
• Analog / Digital

• Size
• DN 20- DN 250

• Stability
• Long-term Stability (<0.1% per year drift)

• Storage Temperature
• -20C to +70C Fahrenheit (oF)

• Temperature Range
• -10C to +60C Celsius (oC)

• Usage
• Industrial/Water flow measurement

• Velocity Range
• 0.05 m/s to 10 m/s

• Weight
• 15 Kilograms (kg)

• Width
• 300 Millimeter (mm)

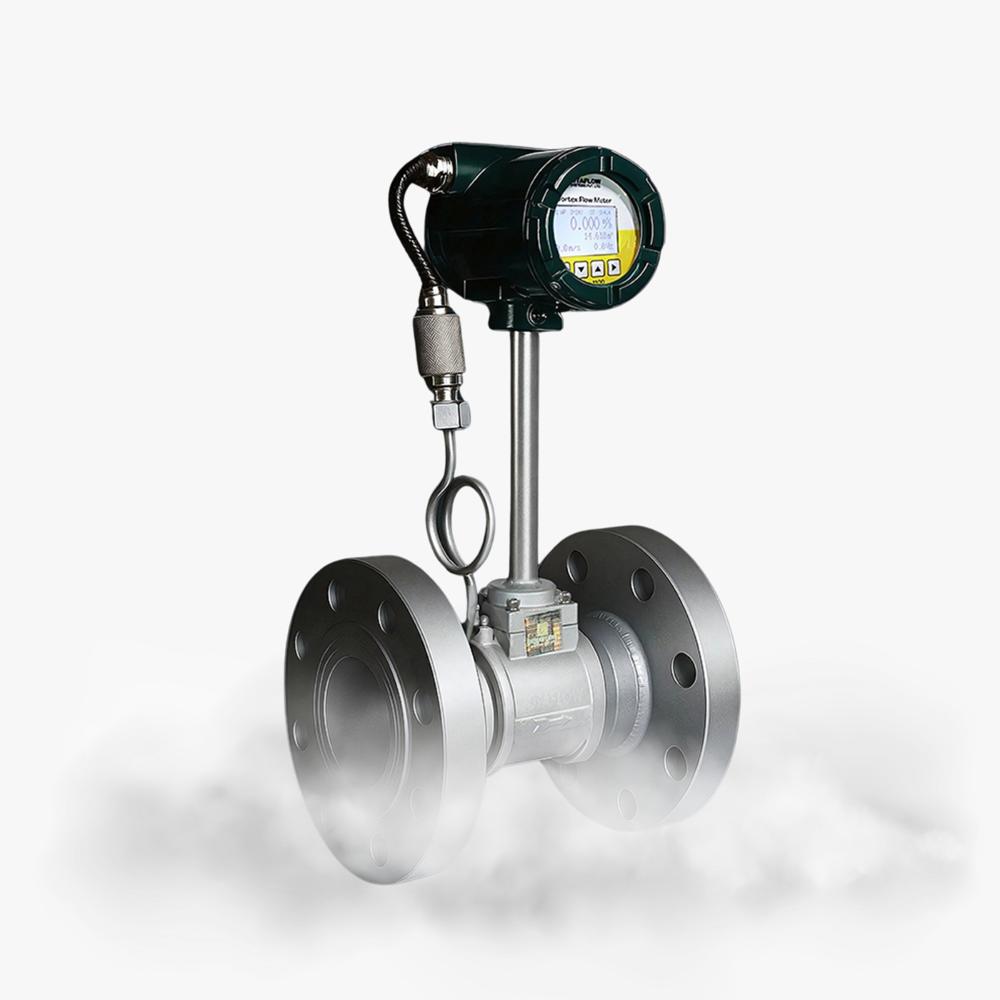

• Equipment Type
• Vortex Flow Meter

• Accuracy
• 1% of reading

• Application Media
• Liquid, Gas, Steam

• Color
• Silver / Green

• Connecting Type
• Flanged

• Connectivity Type
• Wired (4-20mA, Pulse)

• Connector
• Standard industrial connectors

• Current Range
• 4-20 mA

• Diameter
• DN25 to DN300

• Dimension (L*W*H)
• Varies by model (example: 420*170*250 mm)

• Display Type
• Other, Digital LCD

• Flow Rate
• Up to 10000 m3/h (size dependent)

• Frequency
• Pulse output: max 10 kHz

• Housing Material
• Aluminum alloy (display head)

• Humidity %
• 0 to 95% RH (non-condensing)

• Input
• 24V DC

• Language
• English

• Length
• According to pipeline size

• Material
• Stainless Steel

• Measurement Range
• Variable by diameter

• Measuring Units
• m3/h, L/min, kg/h, Nm3/h (selectable)

• Model
• Vortex Flow Meter

• Mounting
• Flange

• Operating Temperature
• -40C to +250C

• Output
• 4-20mA, Pulse

• Power Consumption
• <5W

• Power Supply
• 24V DC

• Pressure Range
• 0.6 to 4.0 MPa

• Process Connection
• ANSI/DIN/Other standard flanges

• Protection
• IP65

• Range
• 0.3 to 10 m/s (velocity)

• Resolution
• 0.001 m3/h

• Response Time
• <1 second

• Sensitivity
• High (factory calibrated)

• Sensor Type
• Piezoelectric

• Signal Type
• Analog, Digital

• Stability
• Long-term drift <0.2%

• Storage Temperature
• -40C to +80C

• Temperature Range
• -40C to +250C

• Velocity Range
• 0.3 to 10 m/s

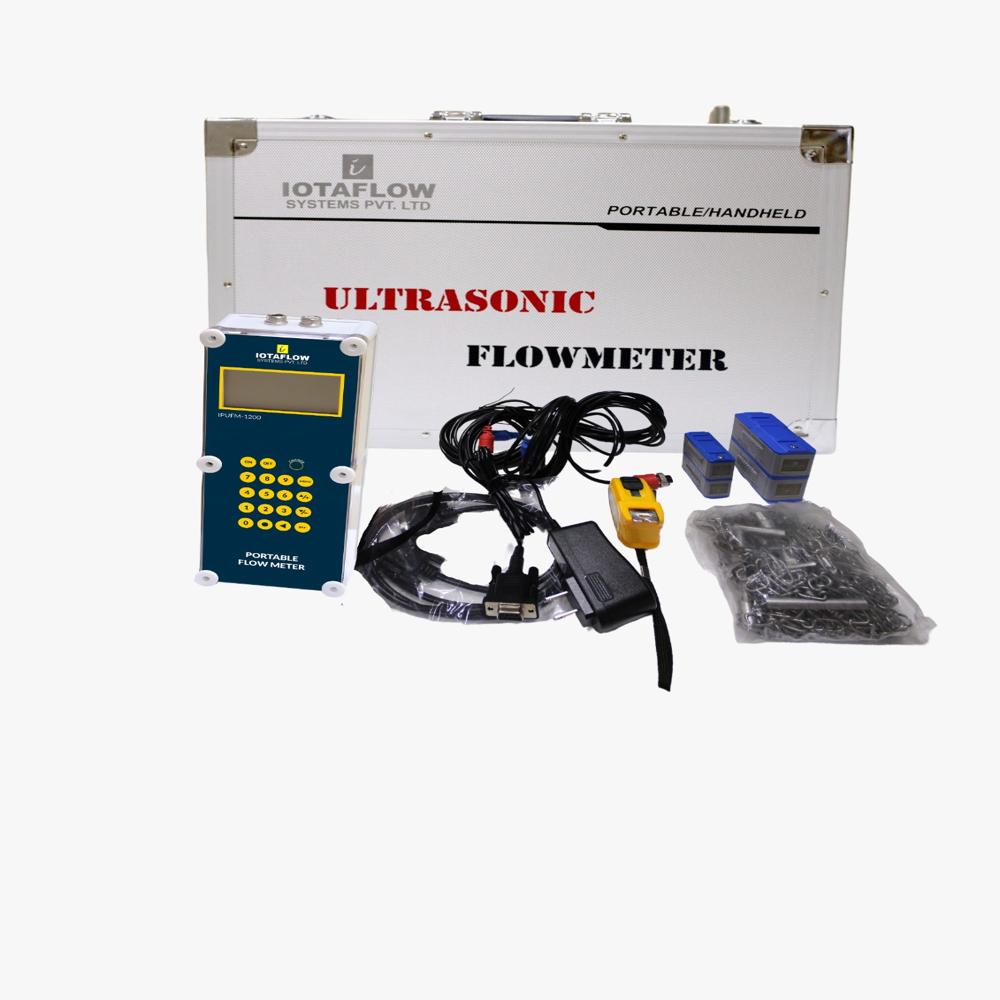

• Equipment Type
• Portable Ultrasonic Flow Meter

• Accuracy
• 1% of reading

• Application Media
• Water, liquids with small quantity of tiny particles

• Capacity
• Varies with battery; up to 10 hours continuous

• Color
• Blue and Yellow

• Connecting Type
• Clamp-on/Port with DB9

• Connectivity Type
• RS232

• Connector
• DB9 Serial Port

• Diameter
• 15mm to 6000mm (pipe OD)

• Dimension (L*W*H)
• 210mm x 90mm x 30mm

• Display Type
• Other, Digital LCD

• Flow Rate
• 0-99999 m3/h

• Frequency
• 1MHz or 2MHz (transducer frequency)

• Housing Material
• ABS Plastic/Polycarbonate

• Humidity %
• 0-85% RH, non-condensing

• Input
• RS232 / Keypad

• Language
• English

• Length
• 210mm

• Material
• ABS / Polycarbonate housing

• Measurement Range
• Depending on transducer; generally up to DN6000

• Measuring Units
• m3/h, L/min, ft3/h, gal/min

• Microphone
• Ultrasonic transducers

• Model
• IPUFM-1200

• Mounting
• Portable/Clamp-on

• Operating Temperature
• -20C to 60C

• Output
• RS232, 4-20mA (optional)

• Power Consumption
• <10W

• Power Supply
• Rechargeable battery / 220V AC adapter

• Pressure Range
• 1.6MPa

• Process Connection
• Clamp-on

• Protection
• IP65

• Range
• 0- 32 m/s

• Resolution
• 0.25mm/s

• Response Time
• 1-2 Seconds

• Sensitivity
• High

• Sensor Type
• Ultrasonic Clamp-On

• Signal Type
• Ultrasonic Pulse

• Stability
• 0.2 % of reading per month

• Storage Temperature
• -30C to 70C

• Temperature Range
• -20C to 60C

• Velocity Range
• 0-32 m/s

• Application Media
• Diesel

• Color
• Red (Body), Silver (Head)

• Dimension (L*W*H)
• Approx. 240 x 180 x 230 mm

• Display Type
• Other, Analog Mechanical Dial

• Flow Rate
• Typically 20-200 L/min (varies by model/size)

• Material
• Metal (Body), Transparent glass (Dial)

• Measurement Range
• 0-99999 Liters (Totalizer Reading)

• Mounting
• Flange Mount

• Output
• Pulse Output Available

• Process Connection
• Flanged End

• Equipment Type
• Electromagnetic BTU Flow Meter

• Accuracy
• 0.5% of Reading

• Application Media
• Water, Glycol, Chilled Water, Hot Water

• Capacity
• Customized per Order

• Color
• Blue (Body)

• Connecting Type
• Flange Connection

• Connectivity Type
• RS485, Analog Output

• Connector
• Standard Flange

• Current Range
• 4-20 mA

• Cut Size
• DN15 to DN600

• Diameter
• DN15 to DN600

• Dimension (L*W*H)
• Depends on Diameter Specified

• Display Type
• Other, Digital LCD Display

• Flow Rate
• 0.03 m3/h to 10,000 m3/h

• Frequency
• Not Explicitly Specified

• Housing Material
• Powder Coated Aluminum Die Cast

• Humidity %
• < 95% RH

• Input
• PT100, 4-wire

• Language
• English

• Length
• As per ANSI/DIN Standards

• Material
• Carbon Steel / SS304 Lining with PTFE

• Measurement Range
• 0~99999999 m3/h

• Measuring Units
• m3/h, L/h, BTU, kWh

• Model
• FAUN D204MB

• Mounting
• Flange Mounted

• Operating Temperature
• Up to 180C

• Output
• Pulse, 4-20 mA, RS485 MODBUS

• Power Consumption
• < 20 VA

• Power Supply
• 24V DC / 230V AC

• Pressure Range
• Max 16 bar

• Process Connection
• Flange as per DIN/ANSI/BS

• Protection
• IP65 / IP68 (optional)

• Range
• Customized as per application

• Resolution
• 0.001 m3/h

• Response Time
• 1 Sec

• Sensitivity
• High

• Sensor Type
• Electromagnetic

• Signal Type
• Analog / Digital

• Stability
• High with Non-Volatile Memory

• Storage Temperature
• -20C to +60C

• Temperature Range
• 0C to 180C

• Velocity Range
• 0.03 m/s to 12 m/s

• Accuracy
• 1.5% (Qmax to Qt) / 2.0% (Qt to Qmin)

• Application Media
• Natural Gas, LPG, City Gas, Air and other non-corrosive gases

• Axis Type
• Radial

• Capacity
• 6 bar Max

• Color
• Silver/Grey

• Connecting Type
• Threaded

• Connectivity Type
• Mechanical, Pulse Output (Optional)

• Connector
• Threaded Ports

• Diameter
• DN 25 / DN 40 / DN 50

• Display Type
• Other, Mechanical Counter

• Flow Rate
• 0.04 - 6 m3/h

• Housing Material
• Aluminum Alloy

• Input
• Gas Flow

• Language
• English

• Length
• 250 mm (Depending on Diameter)

• Load Capacity
• 6 bar

• Material
• Aluminum Alloy (Body), Polycarbonate (Cover)

• Measurement Range
• 0.04 - 6 m3/h

• Measuring Units
• m3

• Model
• Radial-Blade Turbine Gas Meter

• Mounting
• Horizontal

• Operating Temperature
• -10C ~ +40C

• Output
• Pulse Output (Optional)

• Pressure Range
• Up to 6 bar

• Process Connection
• G Thread (BSP/BSPT/NPT Optional)

• Protection
• IP65

• Range
• 0.4 - 6 m3/h

• Resolution
• 0.001 m3

• Response Time
• Immediate mechanical

• Sensitivity
• High (suitable for low flow rates)

• Sensor Type
• Radial Turbine

• Signal Type
• Dry Contact Reed Switch

• Stability
• Long-term Measurement Stability

• Storage Temperature
• -25C ~ +60C

• Temperature Range
• -10C ~ +40C
